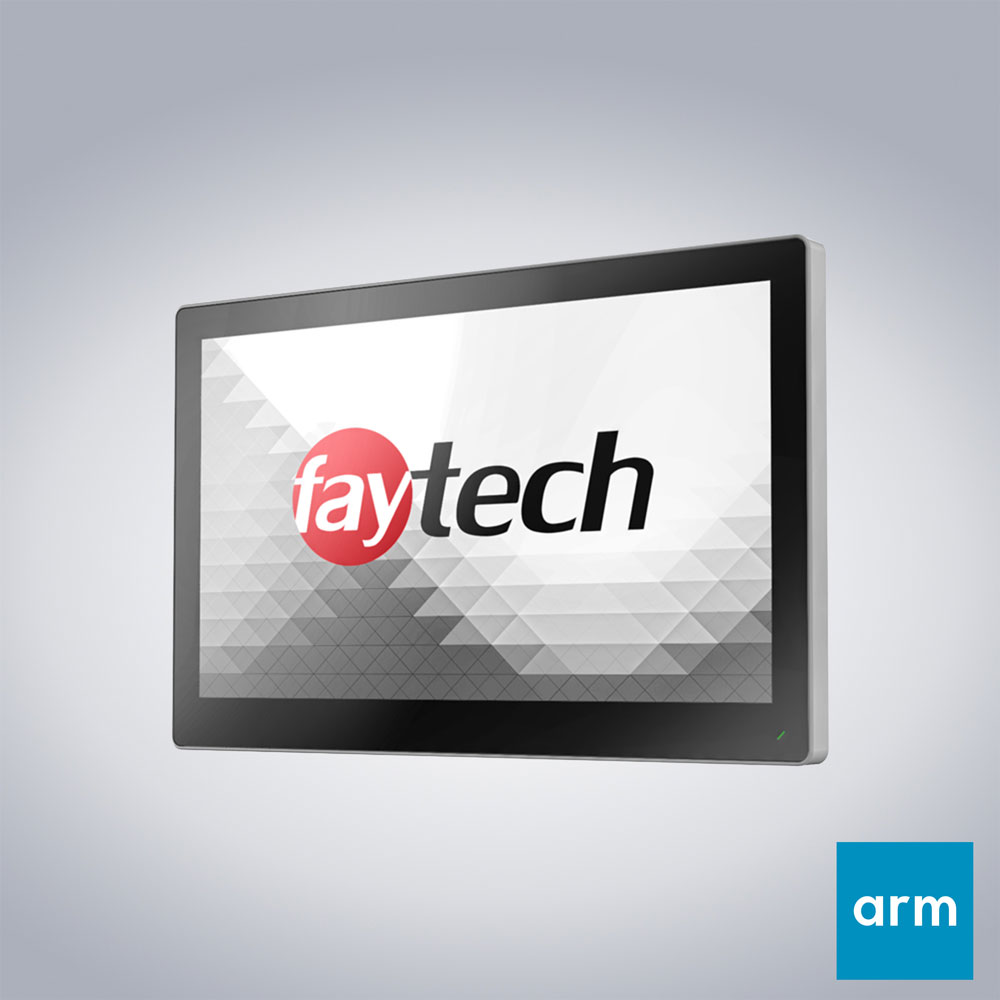

ARM S905D3 Touch PCs (aluminum)

10" - 27" ARM S905D3 touch PCs (aluminum)

Available touch display sizes:
10.1", 15.6", 21", 24", 27"

The ARM-based touch PCs from faytech are designed for energy efficiency and are aimed at customers who require low power consumption and minimal heat generation. These fanless systems are equipped with the A311D processors, which replace the previous V40 model.

The S905D3 processor is more energy efficient and offers 1.2 TOPS, making it suitable for basic AI tasks with low power requirements. This processor is particularly attractive for cost-sensitive applications and is ideal for interactive kiosk systems that require high-resolution video playback and easy user interaction, such as those found in shopping malls, airports or museums

learn more

Request now

Processor: Amlogic S905D3 Quad-Core Cortex-A53
Memory: 2GB RAM memory, 64GB eMMC 5.1
OS: Supports Android 9, Debian 12, Linux (32Bit, 64Bit)

AI support (NPU 1.2Tops)
Anti-glare surface treatment (chemical etching)
Capacitive 10-finger multi-touch panel
1.1mm cover glass with 7H surface hardness
Optically connected touch panel with LCD panel
Patented IP65 front with silicone seal
Integrated W-LAN
2-year guarantee

Housing design: Rubber frame seal
Small housing size (all sizes)
Largehousing size (from 13.3″ to 27″)
IP protection: IP65 front / IP40 rear
Housing color: RAL9004 (black)
Housing coating: Powder coating
Housing material: Aluminum

7″ Touch PC(S905D3)	10″ Touch PC(S905D3)	10.1″ Touch PC(S905D3)
13.3″ Touch PC(S905D3)	15″ Touch PC(S905D3)	15.6″ Touch PC(S905D3)
17″ Touch PC(S905D3)	19″ Touch PC(S905D3)	21.5″ Touch PC(S905D3)
24″ Touch PC(S905D3)	27″ Touch PC(S905D3)

Downloads

The ARM touch PCs from faytech are available in Premium and Basic I/O versions. Both are equipped with optically bonded touch panels for improved stability and visibility. They support various mounting options and come with Android 9, with options for Android 11 or Linux distributions such as Debian and Ubuntu. These versatile PCs are essential for a wide range of applications, including AI workloads, customer interfaces and digital signage.

From 10" to 27" with aluminum frame Display sizes

10.1″ Capacitive Touch PC

Aspect ratio: 16:10
Resolution: 1280 × 800px
Dimensions: 216.96 × 135.60 mm
Brightness: 350 (cd/m²)
15.6″ Capacitive Touch PC

Aspect ratio: 16:9
Resolution: 1920 × 1080px
Dimensions: 344.16 × 193.59 mm
Brightness: 220 (cd/m²)
21.5″ Capacitive Touch PC

Aspect ratio: 16:9
Resolution: 1920 × 1080px
Dimensions: 476.06 × 267.79 mm
Brightness: 250 (cd/m²)
24″ Capacitive Touch PC

Aspect ratio: 16:9
Resolution: 1920 × 1080px
Dimensions: 527.04 × 296.46 mm
Brightness: 500 (cd/m²)
27″ Capacitive Touch PC

Aspect ratio: 16:9
Resolution: 1920 × 1080px
Dimensions: 597.6 × 336.15 mm
Brightness: 300 (cd/m²)
