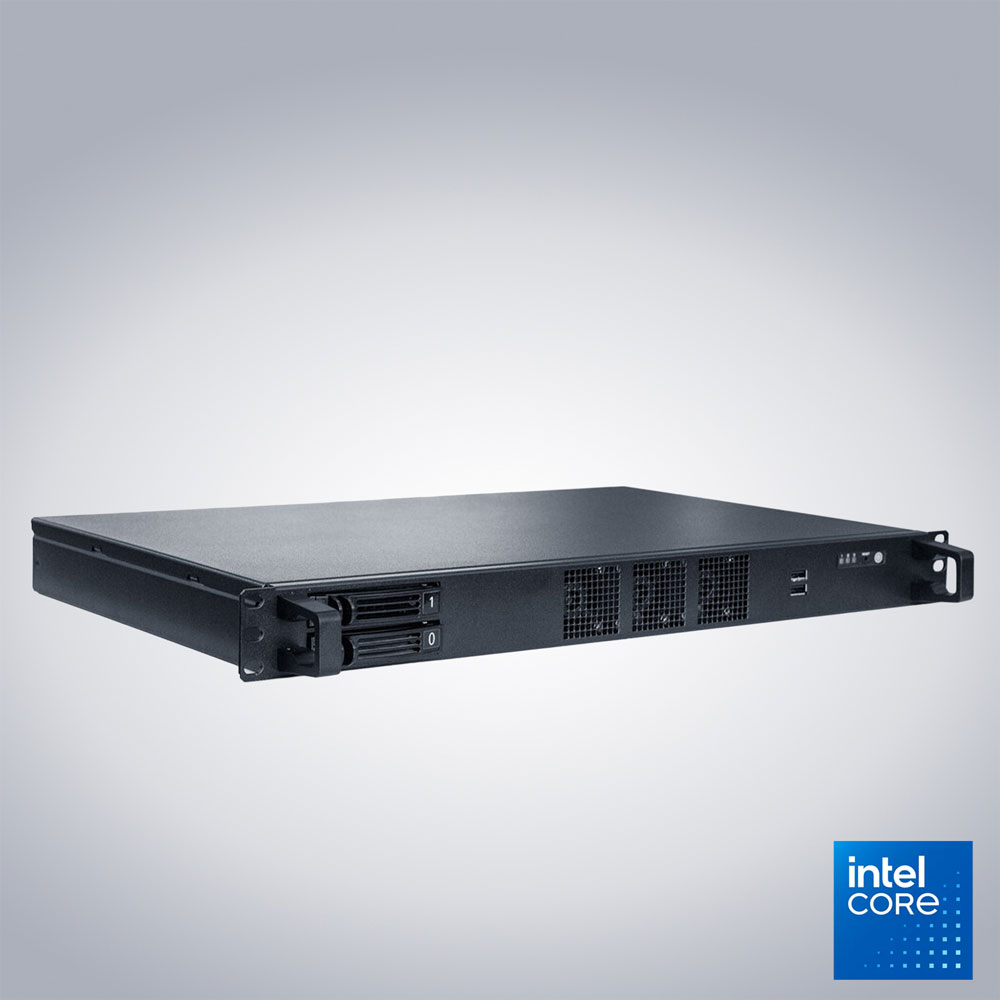

Endurance R1U300i

AKHET® Industrial Server Endurance R1U300i

Endurance R1U300i is a compact industrial server. With a height of just 1 U and an installation depth from 300 mm, it is designed for high density at edge locations or data centers .

It combines Intel® Core™ i5/i7 CPUs, the latest DDR5 memory technology with up to 64 GB RAM, fast NVMe storage and comprehensive remote management via IPMI/BMC.

Its strengths lie in applications with medium computing power requirements and its reliability in continuous operation.

It is suitable wherever up-to-date performance with minimal space requirements is more important than extensive network equipment and expandability.

learn more

Request now Start configuration

19″ rack server with 1U and 300 mm installation depth
for industrial environments

Virtualization on a small scale:
For edge data centers, test environments or as a compact node in cluster architectures.
Edge server in the industry:
Compact hardware for pre-processing sensor data or as an IoT gateway with virtualization options.
Application and database server:
Hosting of enterprise applications, ERP systems or databases with a medium workload.
Monitoring and management systems:
Central platform for monitoring, logging or network management.
File or backup server:
thanks to removable frames for fast hard disk replacement and remote management for failure scenarios.

Processor: Intel® Core i3 14100, Intel® Core i5 14500
Graphics: Intel® UHD Graphics
Chipset: Intel® W680
Form factor: µATX
Memory: 16-64 GB DDR5
Data drive: up to 2 TB
Boot drive: up to 2 TB M.2 NVMe SSD
LAN: 2 x 1 GbE Intel® i210
Remote management: IPMI ASPEED AST2600 (dedicated LAN port)
with iKVM, vMedia support
Expansion slots: 1 x PCIe x16
Mounting depth: 300 mm
Mounting: 1U rackmount

Front I/O
2 x removable frame
Power button
LED
Rear I/O
2 x USB 3.2
3 x RJ-45
2 x Displayport
1 x DVI-D
1 x VGA
1 x COM
AC-in

Dimensions: (WxDxH) 445 x 230 x 44 mm
Material: Powder-coated steel RAL 9005
Weight: approx. 4 kg
Mounting: 1U rackmount

Temperature:
Storage: -20°C to +60°C
in operation: 0°C to 35°C
Humidity:
in storage: 10% to 95% *
in operation: 10% to 85%

* non-condensing

Data sheet

AKHET® Platform For OEM solutions

AKHET® Endurance series is based on our modular VarioFlex platform. We use it to develop not only our standard portfolio of industrial servers, but also OEM solutions for customers with very specific hardware requirements.
You haven't found an Endurance system that fits your use case perfectly?

Then familiarize yourself with the VarioFlex platform here. On this page, we show you what we can do for you as an OEM and how we can develop your dream server from the platform: tailored to your specifications, cost-efficient and with a fast time-to-market.
