Motion Slim

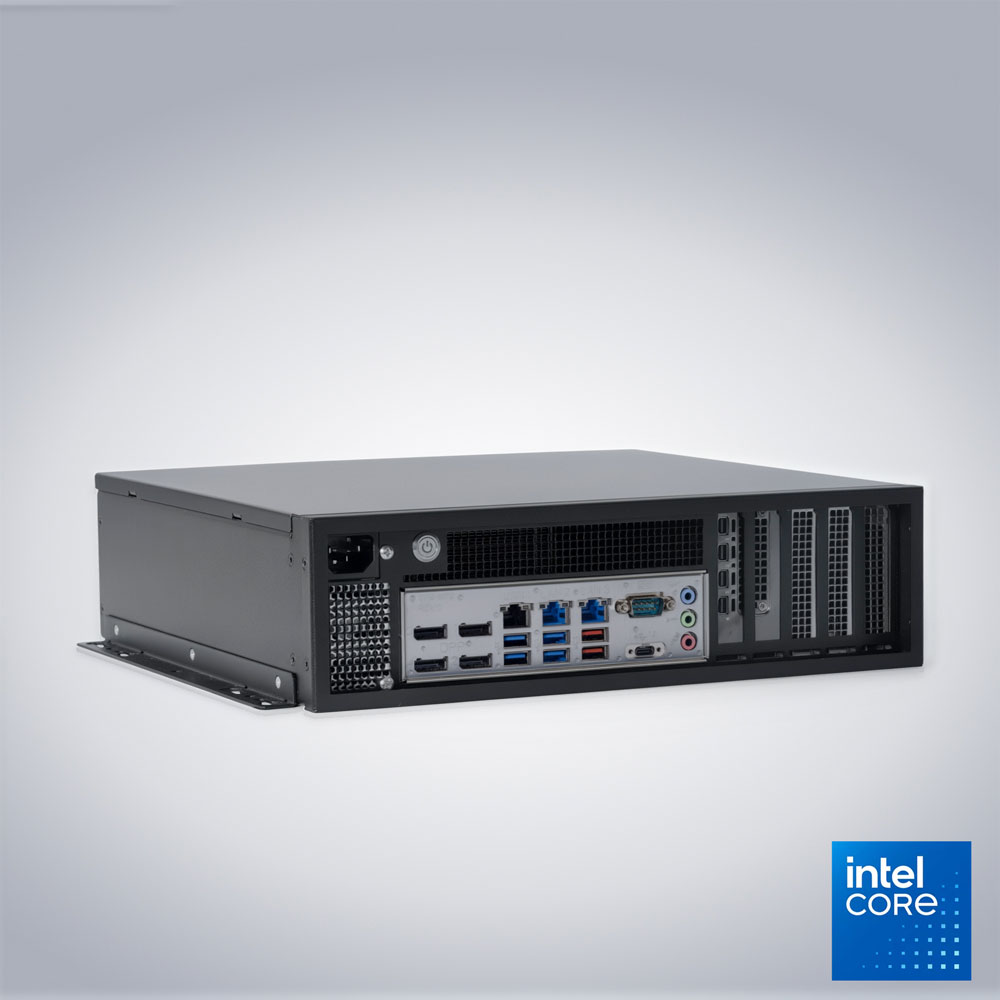

AKHET® Industrial PC Motion Slim

The Motion Slim is a powerful IPC system for desktop or wall mounting.

The 80 mm housing fans ensure that the latest Intel® Core™ Bartlett CPUs can develop their full performance.

With four PCIe expansions and an additional slot, the system offers maximum versatility for a wide range of applications.

An integrated dust filter reliably protects the components when used in industrial environments.

Thanks to its low height of just 88 mm, the Slim model can be integrated to save space - ideal for installations where space is limited.

The Motion Pro benefits from Pyramid Computer GmbH's European supply chain.

learn more

Request now Start configuration

Maximum cooling for high-performance processors thanks to 80 mm fans!

Processor: Intel® Core™ processor (12th/13th/14th Gen)
Mounting: wall, table, switch cabinet, machine integration
Connections: Front I/O
Filter: Dust filter
Cooling: Active

Processor: Intel® Core™ processors (12th/13th/14th Gen)
Graphics: Intel® UHD Graphics 7xx
Chipset: Intel® Q670E
Memory: up to 128 GB DDR5
Drives:
- up to 4 TB M.2 NVMe SSD BootDrive
- up to 4 TB NVMe Datadrive
LAN:
- 1 x 1 GbE (Intel® i219LM)
- 2 x 2.5 GbE (Intel® i226LM)
Remote management: Intel® iAMT
Expansion slots ^*
- 1 x PCIe x16
- 1 x PCIe x4
- 2 x PCIe x1

^* low profile

Front I/O:
- 4 x DisplayPort V1.4a up to 8K
- 3 x RJ45
- 4 x USB 3.2 Gen1 (Type-A)
- 1 x USB 3.2 Gen 2 (Type-C)
- 4 x USB 3.2 Gen2 (Type-A)
- 1 x RS232
- Audio
- AC-in
- Power button
Rear I/O:
- Dust filter (replaceable)

Dimensions (WxDxH): 316 x 316 x 88 mm
Material: steel, RAL 9005 powder-coated
Weight: Approx. 4.7 kg
Mounting: Desktop, wall mounting,

Temperature:
- Storage temperature -20°C to +60°C
- in operation: 15°C to 35°C
Humidity:
- in stock 10% to 95 ^*
- in operation: 10% to 80%

^* non-condensing

Data sheet

Compact IPC High performance in a compact format with efficient cooling system

The Motion Slim concentrates maximum performance in a small space. This makes the system ideal for installation in space-critical environments. An optimized ventilation system ensures stable continuous operation, even at ambient temperatures of up to 35 °C, thus guaranteeing high operational reliability in 24/7 use.

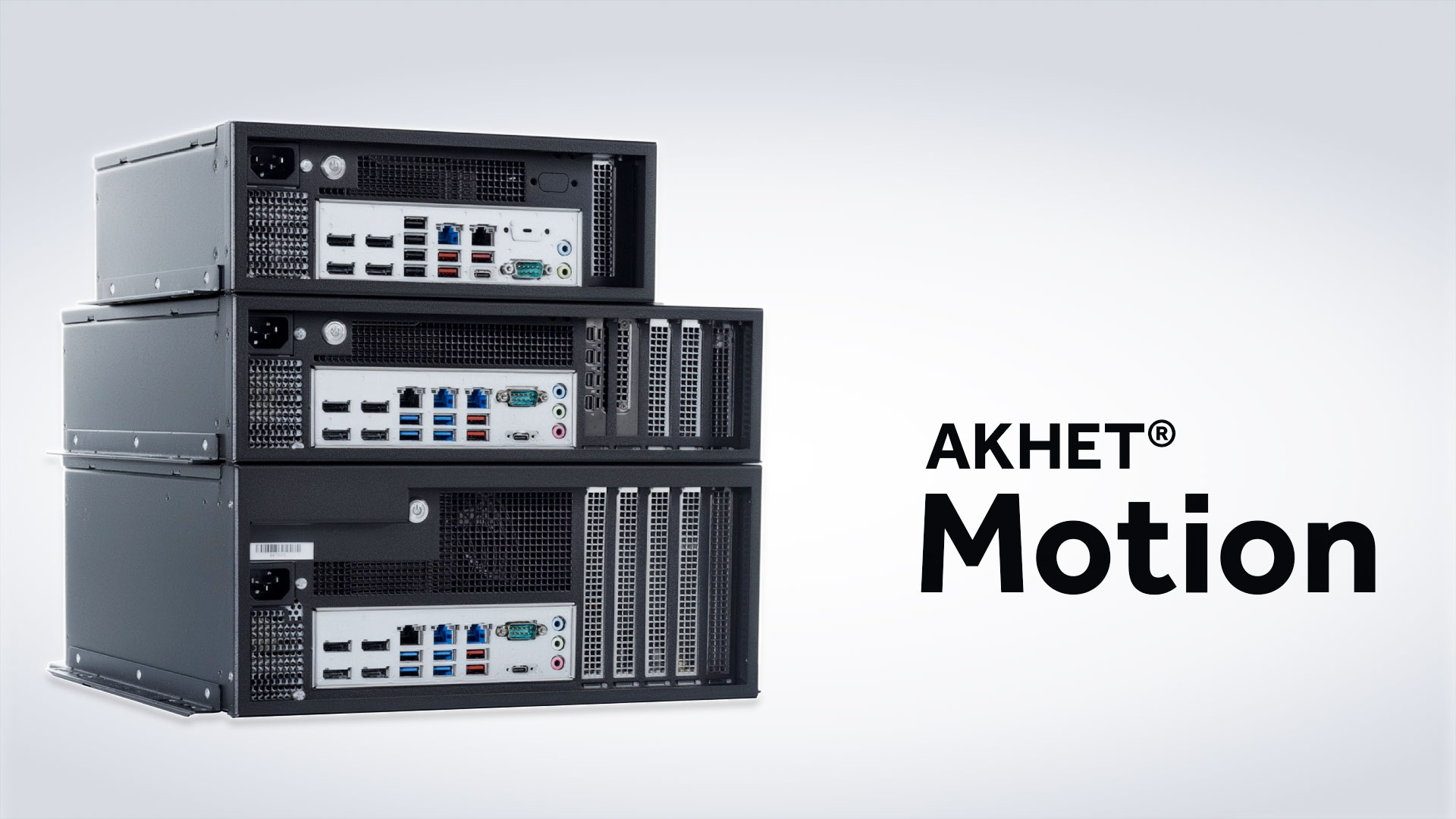

Powerful industrial PCs for 24/7 operation AKHET® Motion Series

The AKHET Motion series combines modern computing power with industrial reliability and a secure supply chain.

Technology
At the heart of the system are the latest Intel® Bartlett Lake processors, which set new standards thanks to increased single and multi-thread performance, integrated hardware security functions and improved energy efficiency.

DDR5 memory technology with high bandwidth (38-50+ GB/s) and capacities of up to 128 GB are also available.

The possible applications of the Motion series range from machine control and process visualization to AI-supported quality control via machine vision to high-end edge computing and predictive maintenance.

Supply chain
A key advantage of the Motion series is our company's new procurement model: all Motion models use only mainboards that are developed and produced entirely in Germany by a renowned European manufacturer. This enables us to strengthen our independence from overseas markets, shorten transportation routes and ensure stable delivery times.

The motion systems also meet the requirements of the European Union's Cyber Resilience Act (CRA). Together with production at the Pyramid in Ichtershausen, Thuringia, this creates a largely intra-European supply chain that offers our customers maximum planning, supply and version security.
