Railon Pro i

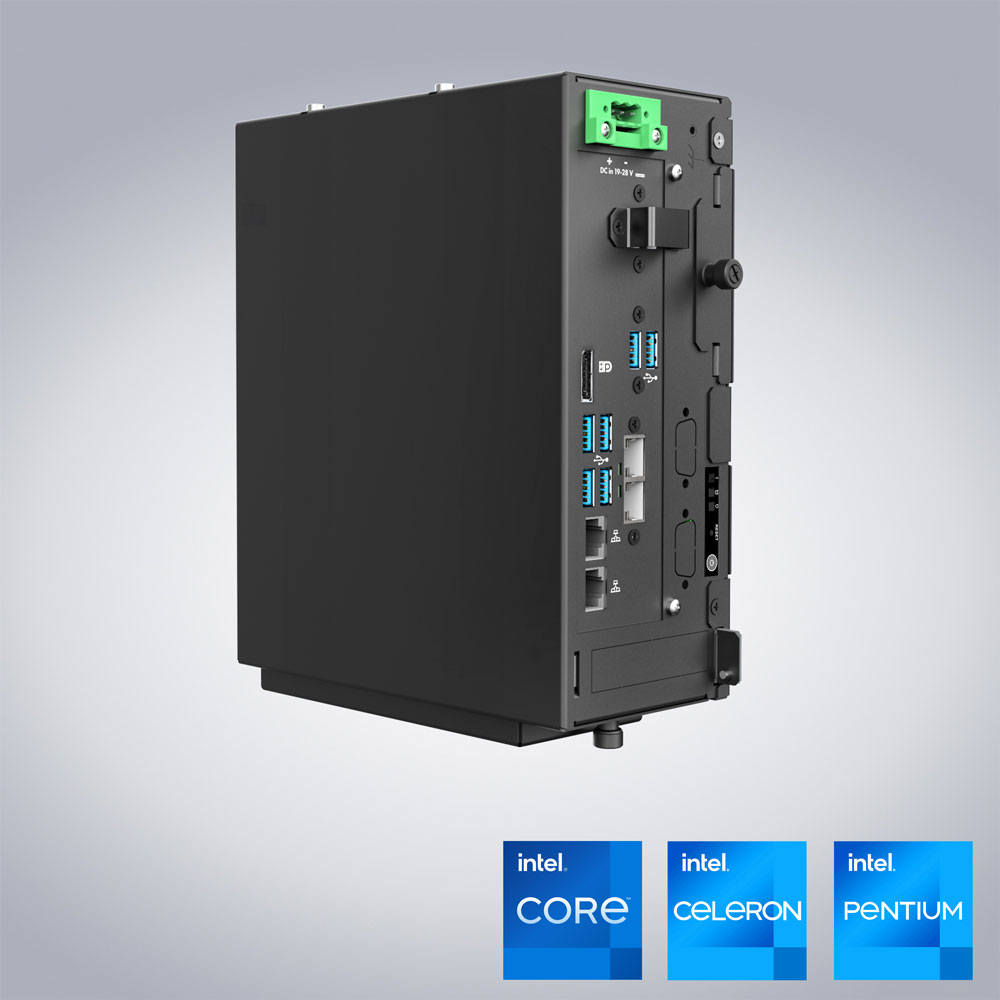

AKHET® Industrial PC Railon Pro i

The Railon Pro I is a compact system that can be equipped with Intel® Core™, Celeron™or Pentium™ CPUs, depending on the performance requirements of the application.

At the front, the system has 4 x USB 2.0 and 4 x USB 3.0 ports, 2 x 1 GBit Ethernet, 2 x RT Ethernet and optionally 4 x 1 GBit Ethernet via 1 x PCIe.

The Railon Pro i is the expandable all-rounder for classic control tasks in an industrial environment.

It can be flexibly adapted and is suitable for applications such as process visualization, automation or as a communication node in production.

An SSD in the hard disk slot, the externally replaceable BIOS battery and the changeable G2 dust filter make this Railon a very maintenance-friendly system.

learn more

Request now Start configuration

Maintenance-friendly industrial PC
with DIN rail mount for industrial systems

DC power supply
Wall mounting or DIN rail
G2 dust filter
Active cooling

Processor: Intel® Core™, Celeron™, Pentium™
Graphics: Intel® UHD Graphics
Chipset: Intel R680E
Memory: up to 32 GB DDR4 ECC support
Boot drive: up to 1 TB M.2 NVMe SSD
LAN:
1 x Intel® I225LM PCIe
1 x Intel I219LM PHY
1 x Intel® I210AT PCIe
Expansion slots: 1 x PCIe

Front
4 x USB 3.2 (Gen 1)
4 x USB 2.0
3 x RJ-45
1 x Displayport
1 x Displayport/HDMI
AC-in
Power button

Rear
Dust filter

Dimensions: (WxDxH) 230 x 190 x 88 mm
Material: Steel, RAL 9005 powder-coated
Weight: Approx. 3 kg
Mounting: DIN rail, wall bracket

Temperature:
In storage: -20 °C to +60 °C
in operation: 15 °C to 35 °C
Humidity:
Storage: 10 % to 95 %*
in operation: 10 % to 80 %

* non-condensing

Data sheet

AKHET® Boxflex platform For OEM solutions

The AKHET® Railon Pro I is based on our modular BoxFlex platform. We use it to develop not only Pyramid's standard IPC portfolio, but also OEM solutions for customers with very specific hardware requirements.

Is the Railon Pro I system not the perfect fit for your use case?

Then familiarize yourself with the BoxFlex platform here. On the page, we show you what we can do for you as an OEM and how we can develop your desired IPC from the platform: tailored to your specifications, cost-efficient and with a fast time-to-market.

More about our BoxFlex platforms Our OEM/ODM services
