10.1" IP65 ARM Touch-PC (A311D, stainless steel)

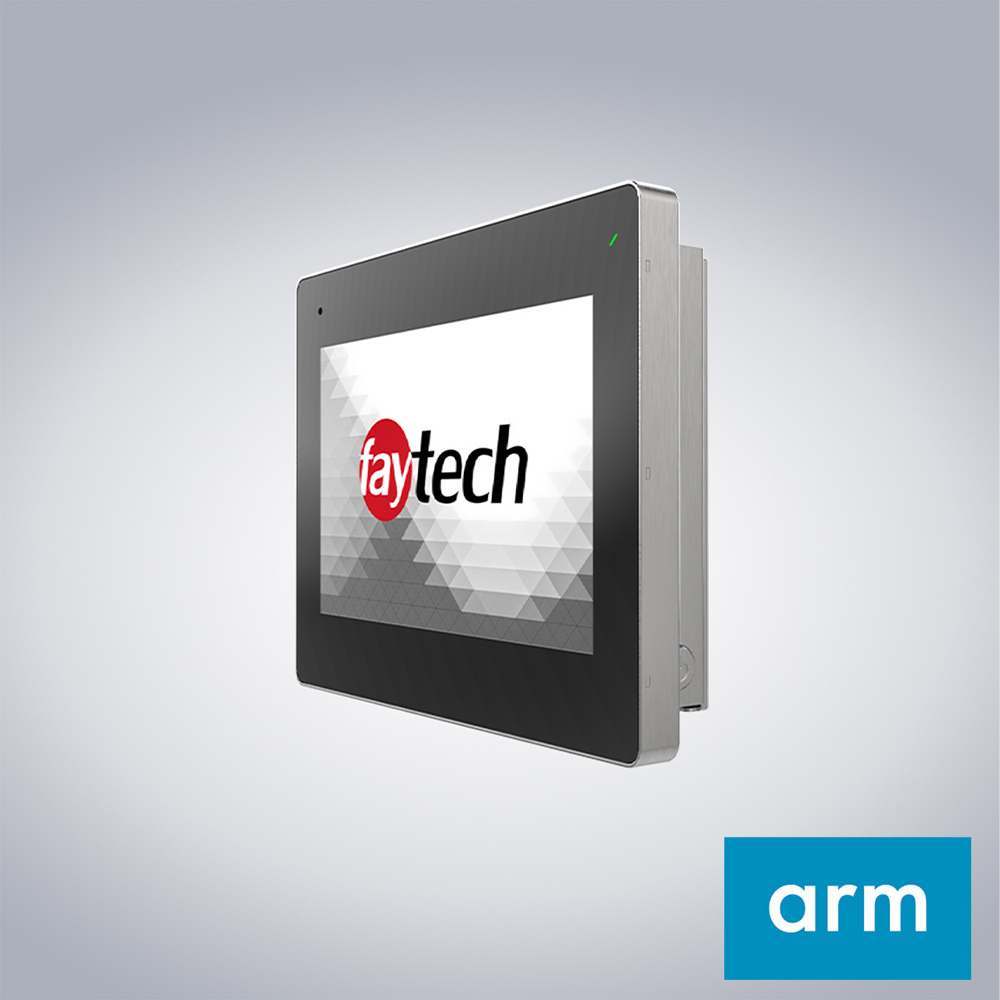

FAYTECH® 10.1″ IP65 ARM touch PC (A311D, stainless steel)

The faytech stainless steel series offers waterproof and dustproof housings (IP65/IP69K) made of brushed stainless steel, ideal for harsh environments, healthcare and the food industry.

learn more

Request now

Complete water and dust protection to IP65
1000 cd/m2 high brightness of the display
100k hours LED service life
Non-glare surface treatment (chemical etching)
Capacitive 10-finger multi-touch control panel
1.1mm cover glass with 7H surface hardness
Touch panel optically connected to the LCD panel
2-year warranty (24/7 operation)

Display size: 10.1″
Aspect ratio: 16:10
Resolution: 1280 × 800
Active area: 216.96 × 135.60mm
Brightness: 1000+ cd/m²
Contrast ratio: 1000 : 1
LED lifespan: 100,000h
Viewing angle: 170° / 170°
Display interface: LVDS

Processor: Amlogic A311D
Chipset: Quad-core Cortex-A73 + dual-core Cortex-A53
Standard Operating System: Android 9
OS on request (additional fee) Linux Ubuntu 22.4, Debian 12 *
RAM: 4 GB LPDDR4
EMMC: 64 GB eMMC 5.1
GPU: Mali G52 MP4
NPU: 5.0Tops
Loudspeaker: 2× 2W
Wifi + BT: RTL8821 + Bluetooth 4.0

1x HDMI
1x SD Card Slot
1x Audio In / Out (MAX98090 audio chip)
4x USB 2.0
1x USB OTG
1x Ethernet Network (10/100/1000 Mbit/s)

To the downloads

Robust touch PCs with protection class IP65 & IP69K

Our ARM-based touch PCs with Amlogic A311D processor offer an energy-efficient alternative for industrial applications with reduced power requirements. They are ideal for simple control, visualization or display tasks and feature a fully enclosed stainless steel housing with IP65/IP69K protection class. The fanless design minimizes maintenance requirements and makes the devices particularly durable - perfect for hygienically sensitive areas such as the food or pharmaceutical industry.

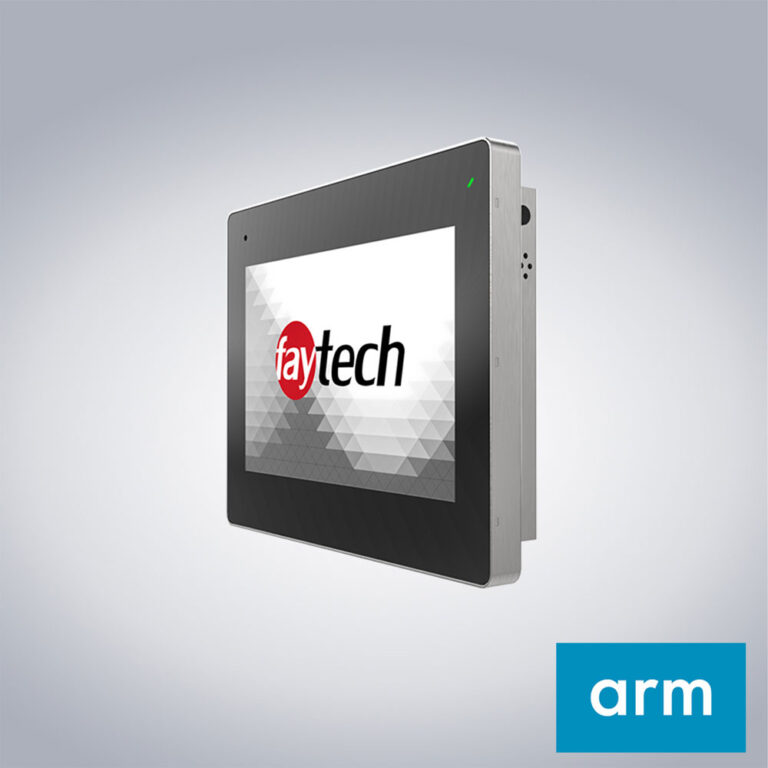

To the Intel-based solution To the ARM IP69K version
